Type H Stainless Steel Hygienic USDA Model Fixed

The USDA certification ensures that Type H US complies with the strictest hygienic criteria and minimizes the cleaning expenses and water consumption with extended lag hole to secure the base to a surface.

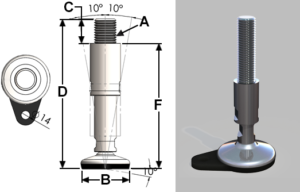

  • Dimensions in inches

Part # Thread (A) Base Dia. (B) Thread Length (C) Total Height (D) Max. Height (E) Min. Height (F) Adjustment Max Load (lbs) Max Pull (lbs) Slope (Degrees)
SW-H81-75-65 3/4-10 3.15 6.5 7.61 6.56 4.65 1.9 3372 562 10
SW-H81-58-65 5/8-11 3.15 6.5 7.61 6.56 4.65 1.9 3372 562 10
