Type HP Plastic Feet

The design of Type HP is based on hygienic construction, mounting flexibility and resistance towards exterior influences.

  • Dimensions in inches

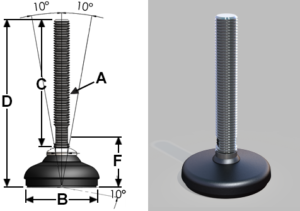

Part # Thread (A) Base Dia. (B) Thread Length (C) Total Height (D) Max. Height (E) Min. Height (F) Adjustment Max Load (lbs) Max Pull (lbs) Slope (Degrees)
SW-60-12-30 1/2-13 2.36 3 4.23 3.78 1.63 3 3372 67 10
SW-60-12-40 1/2-13 2.36 4 5.23 4.78 1.63 4 3372 67 10
SW-60-58-30 5/8-11 2.36 3 4.23 3.67 1.63 3 3372 67 10
SW-60-58-40 5/8-11 2.36 4 5.23 4.67 1.63 4 3372 67 10
