Type HPA Plastic Feet Fixing

Plastic feet Type HPA provides simple support of conveyors and small machines and equipment. Type HPA is available with a non-skid rubber pad and admits slopes up to 10° of floors and equipment.

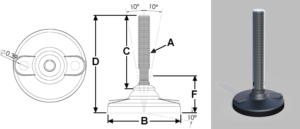

  • Dimensions in inches

Part # Thread (A) Base Dia. (B) Thread Length (C) Total Height (D) Max. Height (E) Min. Height (F) Adjustment Max Load (lbs) Max Pull (lbs) Slope (Degrees)
SW-HPA81-58-60 5/8-11 3.15 6 7.21 6.65 2.26 6 2248 67 10
SW-HPA81-58-80 5/8-11 3.15 8 9.21 8.65 2.26 8 2248 67 10
SW-HPA81-34-60 3/4-10 3.15 6 7.21 6.54 2.26 6 2248 67 10
SW-HPA81-34-80 3/4-10 3.15 8 9.21 8.54 2.26 8 2248 67 10
