Steel Clamping Knobs

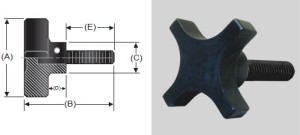

S&W P/N Thread Size Knob Dia

(A)

Total Length (B) Hub Dia (C) Thread Depth

(F)

Hub Length (D) Stud Length (E)
STLHA-2 1/4-20 1 1/2 2 5/8 5/8 3/8 1 3/4
STLHA-3 5/16-18 2 2 3/4 13/16 1/2 1 3/4
STLHA-4 3/8-16 2 1/2 2 7/8 1 9/16 1 3/4
STLH-2T 1/4-20 1 1/2 7/8 1/2 1/2 1/2
STLH-3T 5/16-18 2 1 5/8 1/2 1/2
STLH-4T 3/8-16 2 1/2 1 1/8 13/16 1/2 9/16
STLH-5T 1/2-13 2 1/2 1 1/8 1 9/16 9/16
STLH-2TT 1/4-20 1 1/2 7/8 1/2 1/2
STLH-3TT 5/16-18 2 1 5/8 1/2
STLH-4TT 3/8-16 2 1/2 1 1/8 13/16 9/16
STLH-5TT 1/2-13 2 1/2 1 1/8 1 9/16
