Acme Thread Anti-Vibe® (Stud Style, Heavy-duty, Inch)

  • Steel and Stainless Steel
  • Anti-vibration Base
  • Stud Style
  • Inch

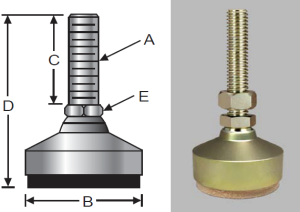

Steel P/N Stainless P/N Thread (A) Base Dia (B) Thread Length (C) Total Height (D) Hex Size (E) Max Load (lbs)
BSW-1H-ACME1 SS-BSW-1H-ACME1 3/8-12 1 1/4 2 3 1/2 5/8 0.36
BSW-2H-ACME1 SS-BSW-2H-ACME1 1/2-10 1 7/8 2 3 3/4 3/4 0.84
BSW-3H-ACME1 SS-BSW-3H-ACME1 5/8-8 2 1/2 2 3 7/8 7/8 1.22
BSW-4H-ACME1 SS-BSW-4H-ACME1 3/4-6 3 2 4 1/8 1 1/16 2.30
BSW-5H-ACME1 SS-BSW-5H-ACME1 1-5 4 3 1/2 6 1 3/8 4.70
BSW-6H-ACME1 SS-BSW-6H-ACME1 1 1/4-5 6 4 6 7/8 1 7/8 9.62
