Acme Thread PolyMounts™ (Stud Style, 1.58″, 2″, 3″, 4″ dia base, Inch)

  • Steel and Stainless Steel
  • Nylon Base
  • Stud Style
  • Inch

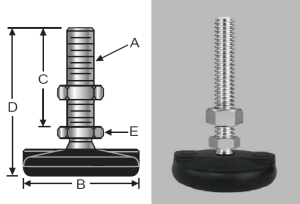

Steel P/N Stainless P/N Thread (A) Base Dia (B) Thread Length (C) Total Height (D) Hex Size (E) Max Load (lbs)
BNYLA13-ACME1 BSNYLA13-ACME1 3/8-12 1.58 2 5/8 3 11/16 5/8 0.20
BNYLA24-ACME1 BSNYLA24-ACME1 3/8-12 2 4 5 1/8 3/4 0.24
BNYLA26-ACME1 BSNYLA26-ACME1 3/8-12 2 6 7 1/8 3/4 0.26
BNYLB24-ACME1 BSNYLB24-ACME1 1/2-10 2 4 5 1/8 3/4 0.34
BNYLB26-ACME1 BSNYLB26-ACME1 1/2-10 2 6 7 1/8 3/4 0.42
BNYLC24-ACME1 BSNYLC24-ACME1 5/8-8 2 4 5 1/8 7/8 0.30
BNYLC26-ACME1 BSNYLC26-ACME1 5/8-8 2 6 7 1/8 7/8 0.54
BNYLA34-ACME1 BSNYLA34-ACME1 3/8-12 3 4 5 1/8 3/4 0.28
BNYLA36-ACME1 BSNYLA36-ACME1 3/8-12 3 6 7 1/8 3/4 0.32
BNYLB34-ACME1 BSNYLB34-ACME1 1/2-10 3 4 5 1/8 3/4 0.42
BNYLB36-ACME1 BSNYLB36-ACME1 1/2-10 3 6 7 1/8 3/4 0.50
BNYLC34-ACME1 BSNYLC34-ACME1 5/8-8 3 4 5 1/8 7/8 0.58
BNYLC36-ACME1 BSNYLC36-ACME1 5/8-8 3 6 7 1/8 7/8 0.72
BNYLD34-ACME1 BSNYLD34-ACME1 3/4-6 3 4 5 1/8 1 1/16 0.74
BNYLD36-ACME1 BSNYLD36-ACME1 3/4-6 3 6 7 1/8 1 1/16 0.88
BNYLC44-ACME1 BSNYLC44-ACME1 5/8-8 4 4 5 5/16 7/8 0.70
BNYLC46-ACME1 BSNYLC46-ACME1 5/8-8 4 6 7 5/16 7/8 0.84
BNYLD44-ACME1 BSNYLD44-ACME1 3/4-6 4 4 5 5/16 1 1/16 0.84
BNYLD46-ACME1 BSNYLD46-ACME1 3/4-6 4 6 7 5/16 1 1/16 0.98
BNYLE44-ACME1 BSNYLE44-ACME1 1-5 4 4 5 5/16 1 3/8 1.20
BNYLE46-ACME1 BSNYLE46-ACME1 1-5 4 6 7 5/16 1 3/8 1.58
BNYLE48-ACME1 BSNYLE48-ACME1 1-5 4 8 9 5/16 1 3/8 1.96
