Steel Anti-Vibe® (Stud Style, Light-duty, Metric)

  • Steel and Stainless Steel
  • Stud Style Levelers
  • Light-duty
  • Vibration Control
  • Metric

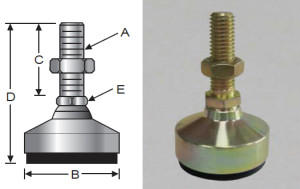

Steel P/N Stainless P/N Thread (A) Base Dia (B) Thread Length (C) Total Height (D) Max Load (lbs) Natural Frequency (Hz) Hex Size (E) Ship Wt (lbs)
MB-SW1L SSMB-SW1L M10 32 51 89 23 14 16 0.36
MB-SW2L SSMB-SW2L M12 48 51 95 55 14 20 0.84
MB-SW3L SSMB-SW3L M16 64 51 98 100 13.5 22 1.48
MB-SW4L SSMB-SW4L M20 76 51 105 148 13.5 27 2.46
MB-SW5L SSMB-SW5L M24 102 89 152 268 13 35 4.56
MB-SW6L SSMB-SW6L M30 152 102 175 314 13 48 9.52
