Short Spring Plunger – Brass & 316 Stainless Steel, Light End Force

  • Brass & 316 Stainless Body
  • Brass & 316 Stainless Nose
  • Light End Force
  • Add “P” to end of part number for optional nylon patch. Do not use the nylon patch if threading into soft material such as aluminum.
  • Add “PT” for nylon pellet.

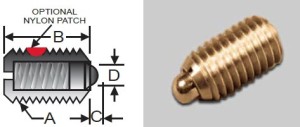

Brass P/N 316 Stainless P/N Thread (A) Body Length (B) Nose Length (C) Nose Dia (D) Start End Force (lbs) End End Force (lbs)
SWB10-2ASL SSW10-2ASL-316 8-32 0.437 0.052 0.070 0.50 1.5
SWB10-2SL SSW10-2SL-316 8-36 0.437 0.052 0.070 0.50 1.5
SWB10-3SL SSW10-3SL-316 10-32 0.468 0.065 0.093 0.75 2.5
SWB10-4SL SSW10-4SL-316 1/4-20 0.531 0.078 0.119 1 3.5
SWB10-5SL SSW10-5SL-316 5/16-18 0.562 0.084 0.135 1.25 4
SWB10-6SL SSW10-6SL-316 3/8-16 0.625 0.110 0.186 1.5 5
SWB10-8SL SSW10-8SL-316 1/2-13 0.750 0.151 0.248 1.75 5.5
SWB10-10SL SSW10-10SL-316 5/8-11 1.062 0.215 0.310 2 8.5
