Corner Leveler

Attaches under edge and inside base wall of cabinet or furniture to supply invisible lift and leveling support with just four screws. Wide foot pad provides solid base of support for up to 330 lbs per four leveling mounts. Customized fit courtesy of simple allen wrench (not included).

Parts included: Plastic cover, black plastic cover, 4-taping screws, bolt, bolt plate, and stamping part.


P/N SW-RACS-8A
Bracket Assemblies Per Pak 1
Base Diameter 1-5/16″
Thread Size M8
Thread Length 2-1/16″
Height Adjustment Range 2-1/2″
Min Installation Height 3″
Size For Adjustment at Top 0.060″
Type of Tool for Top Adjustment Screw Drive
Mounting Holes 4
Hole Diameter 0.19″
Black Plastic Cap for Leveler Yes
Mounting Fasteners Included 4

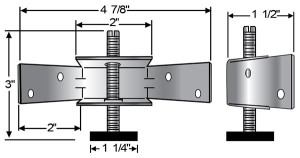

Bracket Dimensions 4.82″w x 1.32″h x 1.44″d
Load Capacity 100 lbs
