OEM can attach brackets at factory, and thread the polymer padded leveling mount on location for smooth, inexpensive, damage-free shipping. Brackets should be installed on long cabinets or furniture every 2’ for best results. Adjusts up to 3” and supports 100 lbs. per mount., Inch
Parts included: 4-taping screws, bolt, bolt plate, and stamping part.

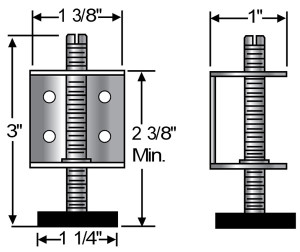

| P/N | SW-RAS-8B |
|---|---|
| Bracket Assemblies Per Pak | 1 |
| Base Diameter | 1-5/16″ |
| Thread Size | M8 |
| Thread Length | 2-11/16″ |
| Height Adjustment Range | 2-1/2″ |
| Min Installation Height | 3″ |
| Size For Adjustment at Top | 0.060″ |
| Type of Tool for Top Adjustment | Screw Drive |
| Mounting Holes | 4 |
| Hole Diameter | 0.19″ |
| Black Plastic Cap for Leveler | No |
| Mounting Fasteners Included | 4 |
| Bracket Dimensions | 4.82″w x 1.45″h x 1.97″d |
| Load Capacity | 100 lbs |
