Made from cold finished steel. Carburized and hardened with a black oxide finish. Ground tolerance ±.0005″.

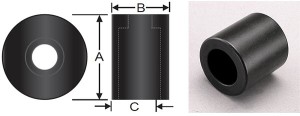

S&W P/N | Screw Size (A) | Button Dia (B) | Button Length (C) | Insert Dia (D) |
---|---|---|---|---|
CF-1 | #10 | 1/2 | 5/16 | 7/32 |
CF-1L | #10 | 1/2 | 1/2 | 7/32 |
CF-2 | 1/4 | 5/8 | 7/16 | 9/32 |
CF-2L | 1/4 | 5/8 | 5/8 | 9/32 |
CF-3 | 5/16 | 3/4 | 1/2 | 3/8 |
CF-6 | 5/16 | 3/4 | 5/8 | 3/8 |
CF-3L | 5/16 | 3/4 | 3/4 | 3/8 |
CF-4 | 3/8 | 15/16 | 5/8 | 7/16 |
CF-7 | 3/8 | 15/16 | 3/4 | 7/16 |
CF-8 | 3/8 | 15/16 | 7/8 | 7/16 |
CF-9 | 3/8 | 15/16 | 1 | 7/16 |
CF-5 | 1/2 | 1-1/4 | 7/8 | 9/16 |
