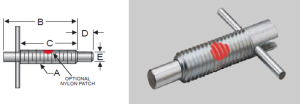

- Locking T-Handle Spring Plungers
- Steel and Stainless Steel
- Nylon Patch
- Also available with nylon pellet
Steel P/N | Stainless P/N | Thread Size (A) | Body Length (B) | Thread Length (C) | Nose Length (D) | Nose Dia (E) | Start End Force (lbs) | End End Force (lbs) |
---|---|---|---|---|---|---|---|---|
THW25 | STHW25 | 1/4-20 | 1.14 | 0.80 | 0.25 | 0.155 | 1.0 | 2.5 |
THW38 | STHW38 | 3/8-16 | 1.68 | 1.20 | 0.38 | 0.233 | 2.0 | 4.0 |
THW50 | STHW50 | 1/2-13 | 2.00 | 1.40 | 0.50 | 0.312 | 2.5 | 5.0 |
THW58 | STHW58 | 5/8-11 | 2.38 | 1.70 | 0.63 | 0.375 | 2.5 | 5.0 |
