- Steel and Stainless Steel
- Stud Style
- Non-swivel
- Inch

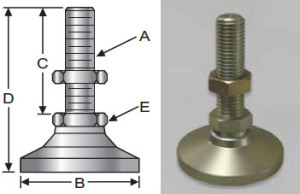

| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Hex Size (E) | Max Load (lbs) | Ship Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|
| BSW-0-SL | SSW-0-SL | 1/4-20 | 1 | 1 1/4 | 1 15/16 | 1/2 | 1000 | 0.1 |
| BSW-0B-SL | SSW-0B-SL | 1/4-20 | 1 | 1 1/4 | 1 15/16 | 1/2 | 775 | 0.12 |
| BSW-100-SL | SSW-100-SL | 5/16-18 | 1 1/4 | 2 | 2 7/8 | 5/8 | 2500 | 0.1 |
| BSW-1-SL | SSW-1-SL | 3/8-16 | 1 1/4 | 2 | 2 7/8 | 5/8 | 3750 | 0.22 |
| BSW-1B-SL | SSW-1B-SL | 3/8-24 | 1 1/4 | 2 | 2 7/8 | 5/8 | 3300 | 0.2 |
| BSW-2-SL | SSW-2-SL | 1/2-13 | 1 7/8 | 2 | 3 1/8 | 3/4 | 5000 | 0.48 |
| BSW-2B-SL | SSW-2B-SL | 1/2-20 | 1 7/8 | 2 | 3 1/8 | 3/4 | 4000 | 0.5 |
| BSW-3-SL | SSW-3-SL | 5/8-11 | 2 1/2 | 2 | 3 1/4 | 7/8 | 6000 | 1.06 |
| BSW-3B-SL | SSW-3B-SL | 5/8-18 | 2 1/2 | 2 | 3 1/4 | 7/8 | 5000 | 1.06 |
| BSW-4-SL | SSW-4-SL | 3/4-10 | 3 | 2 | 3 1/2 | 1 1/16 | 7400 | 1.7 |
| BSW-4B-SL | SSW-4B-SL | 3/4-16 | 3 | 2 | 3 1/2 | 1 1/16 | 6200 | 1.14 |
| BSW-5-SL | SSW-5-SL | 1-8 | 4 | 3 1/2 | 5 3/8 | 1 3/8 | 20000 | 3.54 |
| BSW-5B-SL | SSW-5B-SL | 1-12 | 4 | 3 1/2 | 5 3/8 | 1 3/8 | 18000 | 3.5 |
| BSW-5C-SL | SSW-5C-SL | 7/8-9 | 4 | 4 | 5 7/8 | 1 3/8 | 15000 | 3.32 |
| BSW-5D-SL | SSW-5D-SL | 7/8-14 | 4 | 4 | 5 7/8 | 1 3/8 | 13500 | 3.4 |
