Used for setting up work on machine tools. Also used with stud sets and other applications on jigs and fixtures. The tongue is slightly undersized to fit machine table slot (A dimension). The standard T-nuts are threaded completely through. The safety design is tapped one thread short of going through to prevent the stud from being screwed into the table. Made of cold finished steel, case hardened with a black oxide finish.

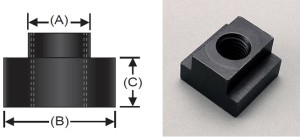

S&W P/N | S&W Safety P/N | Table Slot (A) | Thread | Width (B) | Base Height (C) | Total Length | Total Height |
---|---|---|---|---|---|---|---|
TSN-0 | TSN-100 | 3/8 | 1/4-20 | 5/8 | 1/4 | 7/8 | 3/8 |
TSN-1 | TSN-101 | 3/8 | 5/16-18 | 5/8 | 1/4 | 7/8 | 3/8 |
TSN-18 | TSN-118 | 7/16 | 5/16-18 | 3/4 | 7/32 | 1 | 1/2 |
TSN-2 | TSN-102 | 7/16 | 3/8-16 | 3/4 | 7/32 | 1 | 1/2 |
TSN-3 | TSN-103 | 1/2 | 3/8-16 | 7/8 | 9/32 | 1 | 1/2 |
TSN-19 | TSN-119 | 9/16 | 3/8-16 | 7/8 | 11/32 | 1 | 5/8 |
TSN-4 | TSN-104 | 9/16 | 1/2-13 | 7/8 | 11/32 | 1 | 5/8 |
TSN-20* | TSN-120* | 5/8 | 3/8-16 | 1 | 3/8 | 1 | 5/8 |
TSN-5* | TSN-105* | 5/8 | 1/2-13 | 1 | 3/8 | 1 | 5/8 |
TSN-21* | TSN-121* | 5/8 | 3/8-16 | 1 3/16 | 7/16 | 1 3/16 | 7/8 |
TSN-22* | TSN-122* | 5/8 | 1/2-13 | 1 3/16 | 7/16 | 1 3/16 | 7/8 |
TSN-16 | TSN-116 | 11/16 | 1/2-13 | 1 1/8 | 13/32 | 1 1/8 | 3/4 |
TSN-6 | TSN-106 | 11/16 | 5/8-11 | 1 1/8 | 13/32 | 1 1/8 | 3/4 |
TSN-7 | TSN-107 | 3/4 | 5/8-11 | 1 1/4 | 1/2 | 1 1/8 | 3/4 |
TSN-14 | TSN-114 | 13/16 | 5/8-11 | 1 3/8 | 9/16 | 1 1/2 | 1 |
TSN-8 | TSN-108 | 13/16 | 3/4-10 | 1 3/8 | 9/16 | 1 1/2 | 1 |
TSN-9 | TSN-109 | 7/8 | 3/4-10 | 1 1/2 | 5/8 | 1 1/2 | 1 |
TSN-10 | TSN-110 | 13/16 | 3/4-10 | 1 1/4 | 17/32 | 1 1/2 | 1 |
TSN-15 | TSN-115 | 1 | 3/4-10 | 1 1/2 | 3/4 | 1 1/2 | 1 1/4 |
TSN-13 | TSN-113 | 1 | 7/8-9 | 1 3/4 | 3/4 | 1 1/2 | 1 1/2 |
TSN-11 | TSN-111 | 1 1/8 | 7/8-9 | 1 3/4 | 3/4 | 1 1/2 | 1 1/2 |
TSN-12 | TSN-112 | 1 1/16 | 7/8-9 | 1 3/4 | 3/4 | 1 1/2 | 1 1/2 |
TSN-17 | TSN-117 | 1 1/8 | 1-8 | 1 3/4 | 3/4 | 1 3/4 | 1 1/2 |
