- Delrin® Base
- Steel, 303 Stainless Steel and 316 Stainless Steel
- Tapped Style
- Swivel
- Metric

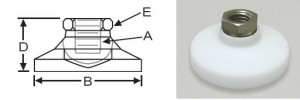

Steel P/N | 303 Stainless P/N | 316 Stainless P/N | Thread (A) | Base Dia (B) | Total Height (D) | Max Load (kg) | Hex Size (E) | Ship Wt (lbs) |
---|---|---|---|---|---|---|---|---|
MD-TS00 | SMD-TS00 | SMD-TS00-316 | M6 | 19 | 13 | 68 | 10 | 0.02 |
MD-TS0 | SMD-TS0 | SMD-TS0-316 | M8 | 25 | 17 | 91 | 12 | 0.02 |
MD-TS1 | SMD-TS1 | SMD-TS1-316 | M10 | 32 | 22 | 136 | 16 | 0.06 |
MD-TS2 | SMD-TS2 | SMD-TS2-316 | M12 | 48 | 29 | 318 | 20 | 0.10 |
MD-TS3 | SMD-TS3 | SMD-TS3-316 | M16 | 64 | 32 | 544 | 22 | 0.20 |
MD-TS4 | SMD-TS4 | SMD-TS4-316 | M20 | 76 | 38 | 818 | 27 | 0.36 |
MD-TS5 | SMD-TS5 | SMD-TS5-316 | M24 | 102 | 48 | 1090 | 35 | 0.72 |
MD-TS6 | SMD-TS6 | SMD-TS6-316 | M30 | 152 | 70 | 1636 | 48 | 1.84 |
