- Low Carbon Steel
- Zinc Plated
- Hex Base
- Inch

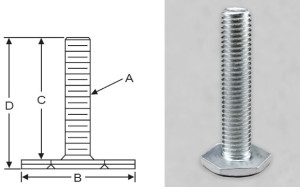

S&W P/N | Thread (A) | Base Across Flats (B) | Thread Length (C) | Total Height (D) | Max Load (lbs) | Ship Wt (lbs) |
---|---|---|---|---|---|---|
HEXL-1Z | 1/4-20 | 9/16 | 1 | 1 3/32 | 1000 | 0.04 |
HEXL-2Z | 5/16-18 | 3/4 | 1 1/2 | 1 5/8 | 2300 | 0.04 |
HEXL-3Z | 3/8-16 | 7/8 | 1 1/2 | 1 21/32 | 3750 | 0.04 |
HEXL-4Z | 3/8-16 | 7/8 | 2 1/2 | 2 21/32 | 3750 | 0.08 |
HEXL-5Z | 1/2-13 | 1 1/16 | 2 1/2 | 2 11/16 | 5000 | 0.08 |
