Steel and Stainless Steel Solid Hub Knurled Control Knobs, Inch

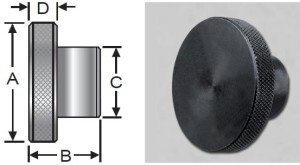

Steel P/N | Stainless P/N | Knob Dia (A) | Total Length (B) | Hub Dia (C) | Knurled Width (D) | Ship Wt (lbs) |
---|---|---|---|---|---|---|
SCK-075 | SSCK-075 | 3/4 | 5/8 | 1/2 | 1/4 | 0.04 |
SCK-100 | SSCK-100 | 1 | 3/4 | 5/8 | 1/4 | 0.08 |
SCK-150 | SSCK-150 | 1 1/2 | 1 | 3/4 | 5/16 | 0.20 |
SCK-200 | SSCK-200 | 2 | 1 1/8 | 1 | 3/8 | 0.46 |
SCK-250 | SSCK-250 | 2 1/2 | 1 1/2 | 1 1/2 | 9/16 | 1.16 |
SCK-300 | SSCK-300 | 3 | 1 3/4 | 1 3/4 | 5/8 | 1.96 |
