Right Hand/Left Hand Threaded Stud, Steel

Machined from solid stock with a right hand thread on one end and a left-hand thread on the other. Threads are the same length on both ends. Used in the construction of jigs, fixtures, and other special tooling. Made from mild steel with a black oxide finish.

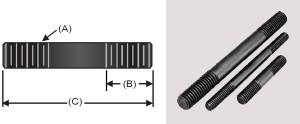

S&W P/N Thread (A) Thread Length (B) Total Height (C)
ST0-15 1/4-20 5/8 1 1/2
ST0-20 1/4-20 1/2 2
ST0-25 1/4-20 3/4 2 1/2
ST0-30 1/4-20 3/4 3
ST0-40 1/4-20 1 4
ST100-20 5/16-18 1/2 2
ST100-25 5/16-18 3/4 2 1/2
ST100-30 5/16-18 3/4 3
ST100-40 5/16-18 1 4
ST1-15 3/8-16 5/8 1 1/2
ST1-17 3/8-16 5/8 1 3/4
ST1-20 3/8-16 3/4 2
ST1-22 3/8-16 3/4 2 1/4
ST1-25 3/8-16 3/4 2 1/2
ST1-30 3/8-16 3/4 3
ST1-35 3/8-16 1 3 1/2
ST1-40 3/8-16 1 4
ST1-45 3/8-16 1 1/4 4 1/2
ST1-50 3/8-16 1 1/4 5
ST1-60 3/8-16 1 1/2 6
ST2-17 1/2-13 3/4 1 3/4
ST2-20 1/2-13 3/4 2
ST2-22 1/2-13 3/4 2 1/4
ST2-25 1/2-13 3/4 2 1/2
ST2-30 1/2-13 3/4 3
ST2-40 1/2-13 1 1/4 4
ST2-45 1/2-13 1 1/4 4 1/2
ST2-50 1/2-13 1 1/4 5
ST2-60 1/2-13 1 1/2 6
ST2-70 1/2-13 1 3/4 7
ST2-80 1/2-13 1 3/4 8
ST3-25 5/8-11 7/8 2 1/2
ST3-30 5/8-11 1 3
ST3-35 5/8-11 1 3 1/2
ST3-40 5/8-11 1 1/4 4
ST3-50 5/8-11 1 1/4 5
ST3-60 5/8-11 1 1/2 6
ST3-70 5/8-11 2 7
ST3-80 5/8-11 2 8
ST4-40 3/4-10 1 3/4 4
ST4-50 3/4-10 1 3/4 5
ST4-60 3/4-10 1 3/4 6
ST4-70 3/4-10 2 7
ST4-80 3/4-10 2 8
