This high load capacity model has a flexible thread and admits up to 9° slopes on floors and equipment. It has a smoothly rounded foot design for ease of cleaning and is also available with a non-skid rubber pad.

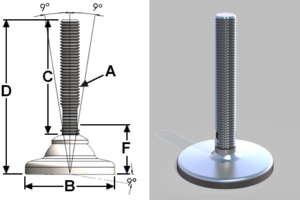

- Dimensions in inches
| Part # | Thread (A) | Base Dia. (B) | Thread Length (C) | Total Height (D) | Max. Height (E) | Min. Height (F) | Adjustment | Max Load (lbs) | Max Pull (lbs) | Slope (Degrees) |
|---|---|---|---|---|---|---|---|---|---|---|
| SW-HG90-58-40 | 5/8-11 | 3.50 | 4 | 5.02 | 4.46 | 1.63 | 2.09 | 3800 | 2700 | 9 |
| SW-HG90-58-60 | 5/8-11 | 3.50 | 6 | 7.02 | 6.46 | 1.63 | 4.09 | 6800 | 2700 | 9 |
| SW-HG90-75-40 | 3/4-10 | 3.50 | 4 | 5.02 | 4.35 | 1.63 | 1.88 | 9800 | 2700 | 9 |
| SW-HG90-75-60 | 3/4-10 | 3.50 | 6 | 7.02 | 6.35 | 1.63 | 3.88 | 9800 | 2700 | 9 |
| SW-HG110-58-40 | 5/8-11 | 4.29 | 4 | 5.02 | 4.46 | 1.63 | 2.09 | 6800 | 2700 | 9 |
| SW-HG110-58-60 | 5/8-11 | 4.29 | 6 | 7.02 | 6.46 | 1.63 | 4.09 | 6800 | 2700 | 9 |
| SW-HG110-75-60 | 3/4-10 | 4.29 | 6 | 7.02 | 6.35 | 1.63 | 3.88 | 9800 | 2700 | 9 |
| SW-HG110-75-80 | 3/4/2010 | 4.29 | 8 | 9.02 | 8.35 | 1.63 | 5.88 | 8100 | 2700 | 9 |
