- Steel, 303 Stainless Steel and 316 Stainless Steel
- Stud Style
- Swivel
- Inch

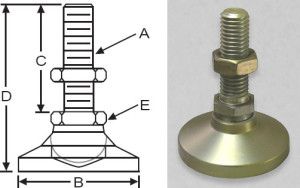

| S&W P/N | 303 Stainless P/N | 316 Stainless P/N | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Max Load (lbs) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| BSW-00 | SSW-00 | SSW-00-316 | 10-32 | 3/4 | 1 | 1 1/2 | 700 | 3/8 | 0.04 |
| BSW-00A | SSW-00A | SSW-00A-316 | 10-32 | 3/4 | 2 | 2 1/2 | 700 | 3/8 | 0.04 |
| BSW-0 | SSW-0 | SSW-0-316 | 1/4-20 | 1 | 1 1/4 | 1 15/16 | 1000 | 1/2 | 0.10 |
| BSW-0A | SSW-0A | SSW-0A-316 | 1/4-20 | 1 | 2 1/2 | 3 3/16 | 1000 | 1/2 | 0.12 |
| BSW-0B | SSW-0B | SSW-0B-316 | 1/4-28 | 1 | 1 1/4 | 1 15/16 | 775 | 1/2 | 0.12 |
| BSW-100 | SSW-100 | SSW-100-316 | 5/16-18 | 1 1/4 | 2 | 2 7/8 | 2500 | 5/8 | 0.10 |
| BSW-100A | SSW-100A | SSW-100A-316 | 5/16-18 | 1 1/4 | 4 | 4 7/8 | 2500 | 5/8 | 0.12 |
| BSW-1 | SSW-1 | SSW-1-316 | 3/8-16 | 1 1/4 | 2 | 2 7/8 | 3750 | 5/8 | 0.22 |
| BSW-1A | SSW-1A | SSW-1A-316 | 3/8-16 | 1 1/4 | 4 | 4 7/8 | 3750 | 5/8 | 0.26 |
| BSW-1B | SSW-1B | SSW-1B-316 | 3/8-24 | 1 1/4 | 2 | 2 7/8 | 3300 | 5/8 | 0.20 |
| BSW-2 | SSW-2 | SSW-2-316 | 1/2-13 | 1 7/8 | 2 | 3 1/8 | 5000 | 3/4 | 0.48 |
| BSW-2A | SSW-2A | SSW-2A-316 | 1/2-13 | 1 7/8 | 4 | 5 1/8 | 5000 | 3/4 | 0.58 |
| BSW-2B | SSW-2B | SSW-2B-316 | 1/2-20 | 1 7/8 | 2 | 3 1/8 | 4000 | 3/4 | 0.50 |
| BSW-2-SP6 | SSW-2-SP6 | SSW-2-316-SP6 | 1/2-13 | 1 7/8 | 6 | 7 1/8 | 5000 | 3/4 | .62 |
| BSW-3 | SSW-3 | SSW-3-316 | 5/8-11 | 2 1/2 | 2 | 3 1/4 | 6000 | 7/8 | 1.06 |
| BSW-3A | SSW-3A | SSW-3A-316 | 5/8-11 | 2 1/2 | 4 | 5 1/4 | 6000 | 7/8 | 1.12 |
| BSW-3B | SSW-3B | SSW-3B-316 | 5/8-18 | 2 1/2 | 2 | 3 1/4 | 5000 | 7/8 | 1.06 |
| BSW-3-SP6 | SSW-3-SP6 | SSW-3-316-SP6 | 5/8-11 | 2 1/2 | 6 | 7 1/4 | 6000 | 7/8 | 1.20 |
| BSW-4 | SSW-4 | SSW-4-316 | 3/4-10 | 3 | 2 | 3 1/2 | 7400 | 1 1/16 | 1.70 |
| BSW-4A | SSW-4A | SSW-4A-316 | 3/4-10 | 3 | 4 | 5 1/2 | 7400 | 1 1/16 | 1.90 |
| BSW-4B | SSW-4B | SSW-4B-316 | 3/4-16 | 3 | 2 | 3 1/2 | 6200 | 1 1/16 | 1.14 |
| BSW-4-SP6 | SSW-4-SP6 | SSW-4-316-SP6 | 3/4-10 | 3 | 6 | 7 1/2 | 7400 | 1 1/16 | 2.0 |
| BSW-5 | SSW-5 | SSW-5-316 | 1-8 | 4 | 3 1/2 | 5 3/8 | 20000 | 1 3/8 | 3.54 |
| BSW-5EL | SSW-5EL | SSW-5EL-316 | 1-8 | 4 | 4 1/4 | 6 1/8 | 20000 | 1 3/8 | 3.70 |
| BSW-5A | SSW-5A | SSW-5A-316 | 1-8 | 4 | 6 | 7 7/8 | 20000 | 1 3/8 | 4.04 |
| BSW-5G | SSW-5G | SSW-5G-316 | 1-8 | 4 | 8 | 9 7/8 | 20000 | 1 3/8 | 4.54 |
| BSW-5B | SSW-5B | SSW-5B-316 | 1-12 | 4 | 3 1/2 | 5 3/8 | 18000 | 1 3/8 | 3.50 |
| BSW-5C | SSW-5C | SSW-5C-316 | 7/8-9 | 4 | 4 | 5 7/8 | 15000 | 1 3/8 | 3.32 |
| BSW-5D | SSW-5D | SSW-5D-316 | 7/8-14 | 4 | 4 | 5 7/8 | 13500 | 1 3/8 | 3.40 |
| BSW-6 | SSW-6 | SSW-6-316 | 1 1/4-7 | 6 | 4 | 6 3/4 | 43000 | 1 7/8 | 10.40 |
| BSW-6EL | SSW-6EL | SSW-6EL-316 | 1 1/4-7 | 6 | 6 | 8 3/4 | 43000 | 1 7/8 | 10.91 |
