- Steel and Stainless Steel Body
- Steel and Stainless Steel Round Nose
- Black Oxide Coated
- Light End Force

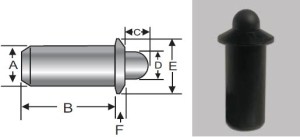

| Steel P/N | Stainless P/N | OD (A) | Body Length (B) | Exposed Length (C) | Nose Dia (D) | Flange Dia (E) | Flange Length (F) | Start End Force (lbs) | End End Force (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| SWPF10-3A | SSWPF10-3A | 0.188 | 0.441 | 0.094 | 0.121 | 0.250 | 0.044 | 0.75 | 2 |
| SWPF10-4A | SSWPF10-4A | 0.250 | 0.521 | 0.125 | 0.168 | 0.312 | 0.055 | 1.25 | 3 |
| SWPF10-6A | SSWPF10-6A | 0.375 | 0.786 | 0.187 | 0.234 | 0.500 | 0.096 | 2.5 | 7 |
| SWPF10-8A | SSWPF10-8A | 0.500 | 1.100 | 0.250 | 0.332 | 0.688 | 0.134 | 4 | 9 |
