- Locking, Hand-Retractable Knurled Handle Spring Plungers
- Steel, Stainless Steel, and Brass

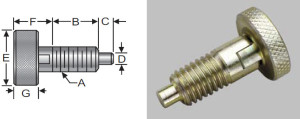

Steel P/N | 303 Stainless P/N | 316 Stainless P/N | Brass P/N | Thread (A) | Thread Length (B) | Nose Length (C) | Nose Dia (D) | Knob Dia (E) | Knob Hub Length (F) | Knurled Width (G) | Start End Force (lbs) | End End Force (lbs) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
KLS-0 | SKLS-0 | SKLS-0-316 | BKLS-0 | 10-32 | 0.40 | 0.09 | 0.104 | 3/8 | 23/64 | 3/16 | 0.5 | 3 |
KLS-1 | SKLS-1 | SKLS-1-316 | BKLS-1 | 1/4-20 | 0.50 | 0.13 | 0.123 | 1/2 | 5/16 | 3/16 | 1 | 4 |
KLS-2 | SKLS-2 | SKLS-2-316 | BKLS-2 | 5/16-18 | 0.63 | 0.19 | 0.154 | 5/8 | 3/8 | 1/4 | 1 | 5 |
KLS-3 | SKLS-3 | SKLS-3-316 | BKLS-3 | 3/8-16 | 0.75 | 0.22 | 0.185 | 3/4 | 1/2 | 1/4 | 1 | 8 |
KLS-4 | SKLS-4 | SKLS-4-316 | BKLS-4 | 1/2-13 | 0.88 | 0.25 | 0.248 | 1 | 3/4 | 3/8 | 1 | 10 |
KLS-5 | SKLS-5 | SKLS-5-316 | BKLS-5 | 5/8-11 | 1.00 | 0.32 | 0.312 | 1-1/4 | 3/4 | 7/16 | 1.5 | 12 |
KLS-6 | SKLS-6 | SKLS-6-316 | BKLS-6 | 3/4-10 | 1.20 | 0.45 | 0.375 | 1-1/2 | 13/16 | 1/2 | 1.5 | 16 |
