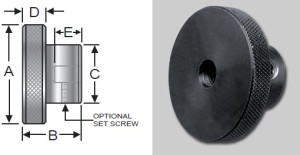

Knurled Control Knobs – Reamed Through With Set Screw, Inch

Steel and Stainless Steel Reamed Through Knurled Control Knobs With Set Screw, Inch


Steel P/N Stainless P/N Reamed Dia Knob Dia (A) Total Length (B) Hub Dia (C) Knurled Width (D) Ship Wt (lbs)
SCKTS-041 WHRTS-041 3/16 3/4 5/8 1/2 1/4 0.04
SCKTS-042 WHRTS-042 1/4 3/4 5/8 1/2 1/4 0.04
SCKTS-043 WHRTS-043 1/4 1 3/4 5/8 1/4 0.08
SCKTS-044 WHRTS-044 5/16 1 3/4 5/8 1/4 0.08
SCKTS-045 WHRTS-045 5/16 1 1/2 1 3/4 5/16 0.20
SCKTS-046 WHRTS-046 3/8 1 1/2 1 3/4 5/16 0.20
SCKTS-047 WHRTS-047 3/8 2 1 1/8 1 3/8 0.46
SCKTS-048 WHRTS-048 1/2 2 1 1/8 1 3/8 0.46
SCKTS-049 WHRTS-049 1/2 2 1/2 1 1/2 1 1/2 9/16 1.16
SCKTS-051 WHRTS-051 5/8 2 1/2 1 1/2 1 1/2 9/16 1.16
SCKTS-052 WHRTS-052 5/8 3 1 3/4 1 3/4 5/8 1.96
SCKTS-053 WHRTS-053 3/4 3 1 3/4 1 3/4 5/8 1.96
