Dog Point Screw

Used where permanent location of one part in relation to another is desired. Point is usually spotted in hole or slot. Heat treated steel with black oxide finish.

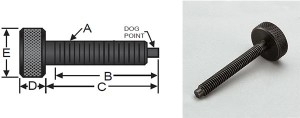

S&W P/N Thread (A) Thread Length (B) Stud Length (C) Head Thickness (D) Head Dia (E)
DPS-101 10-24 3/4 1 1/4 3/4
DPS-102 10-24 1 1/4 1 1/2 1/4 3/4
DPS-103 10-24 1 3/4 2 1/4 3/4
DPS-104 1/4-20 1 1/4 1 1/2 5/16 1
DPS-105 1/4-20 1 3/4 2 5/16 1
DPS-106 1/4-20 2 1/4 2 1/2 5/16 1
DPS-107 5/16-18 1 1/4 1 1/2 3/8 1 1/8
DPS-108 5/16-18 1 3/4 2 3/8 1 1/8
DPS-109 5/16-18 2 1/4 2 1/2 3/8 1 1/8
DPS-110 3/8-16 1 3/4 2 7/16 1 1/4
DPS-112 3/8-16 2 3/4 3 7/16 1 1/4
DPS-113 1/2-13 2 3/4 3 1/2 1 1/4
