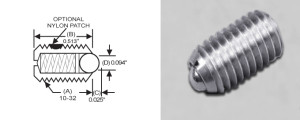

- 303 Stainless Steel Body
- Stainless Ball
- Add “P” to end of part number for optional nylon patch. Do not use the nylon patch if threading into soft material such as aluminum.
- Add “PT” for nylon pellet.
| Stainless Ball P/N | Thread (A) | Body Length (B) | Exposed Length (C) | Ball Dia. (D) | Start – End Force (lbs) |
|---|---|---|---|---|---|
| MSSW10-1B | M3 x 0.5 | 7 | 0.4 | 1.5 | 0.7 – 1 |
| MSSW10-2B | M4 x 0.7 | 9 | 0.80 | 2.5 | 0.9 – 2.25 |
| MSSW10-4B | M6 x 1.0 | 14 | 1 | 3.5 | 2-3 |
| MSSW10-4BL | M6 x 1.0 | 14 | 1 | 3.5 | 0.45-1.4 |
| MSSW10-4BH | M6 x 1.0 | 14 | 1 | 3.5 | 6.3 – 9 |
| MSSW10-5B | M8 x 1.25 | 16 | 1.5 | 5 | 3.4 – 6.8 |
| MSSW10-5BL | M8 x 1.25 | 16 | 1.5 | 5 | 1.1 – 2.25 |
| MSSW10-5BH | M8 x 1.25 | 16 | 1.5 | 5 | 9 – 13.5 |
| MSSW10-6B | M10 x 1.5 | 19 | 2 | 6 | 4.5 – 7.8 |
| MSSW10-6BL | M10 x 1.5 | 19 | 2 | 6 | 1.8 – 3.4 |
| MSSW10-6BH | M10 x 1.5 | 19 | 2 | 6 | 13.5 – 20 |
| MSSW10-8B | M12 x 1.75 | 22 | 2.5 | 8 | 6.75 – 12.4 |
| MSSW10-8BL | M12 x 1.75 | 22 | 2.5 | 8 | 2.25 – 4.5 |
| MSSW10-8BH | M12 x 1.75 | 22 | 2.5 | 8 | 17 – 26 |
