- Steel and Stainless Steel
- Nylon Base
- Stud Style
- Metric
- Patent# US 6,742,750 B2

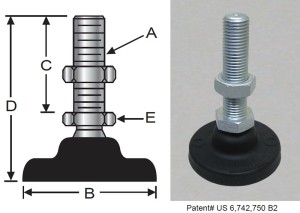

Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Max Load (kg) | Hex Size (E) | Ship Wt (lbs) |
---|---|---|---|---|---|---|---|---|
BMNYLC54 | BSMNYLC54 | M16 | 127 | 102 | 159 | 4545 | 27 | 1.12 |
BMNYLC56 | BSMNYLC56 | M16 | 127 | 152 | 210 | 4545 | 27 | 1.26 |
BMNYLC58 | BSMNYLC58 | M16 | 127 | 203 | 260 | 4545 | 27 | 1.40 |
BMNYLC510 | BSMNYLC510 | M16 | 127 | 254 | 311 | 4545 | 27 | 1.63 |
BMNYLD54 | BSMNYLD54 | M20 | 127 | 102 | 159 | 4545 | 27 | 1.22 |
BMNYLD56 | BSMNYLD56 | M20 | 127 | 152 | 210 | 4545 | 27 | 1.39 |
BMNYLD58 | BSMNYLD58 | M20 | 127 | 203 | 260 | 4545 | 27 | 1.56 |
BMNYLD510 | BSMNYLD510 | M20 | 127 | 254 | 311 | 4545 | 27 | 1.70 |
BMNYLE54 | BSMNYLE54 | M24 | 127 | 102 | 159 | 4545 | 35 | 1.66 |
BMNYLE56 | BSMNYLE56 | M24 | 127 | 152 | 210 | 4545 | 35 | 1.83 |
BMNYLE58 | BSMNYLE58 | M24 | 127 | 203 | 260 | 4545 | 35 | 2.00 |
BMNYLE510 | BSMNYLE510 | M24 | 127 | 254 | 311 | 4545 | 35 | 2.17 |
BMNYLG54 | BSMNYLG54 | M30 | 127 | 102 | 159 | 4545 | 35 | 2.20 |
BMNYLG56 | BSMNYLG56 | M30 | 127 | 152 | 210 | 4545 | 35 | 2.37 |
BMNYLG58 | BSMNYLG58 | M30 | 127 | 203 | 260 | 4545 | 35 | 2.54 |
BMNYLG510 | BSMNYLG510 | M30 | 127 | 254 | 311 | 4545 | 35 | 1.71 |
