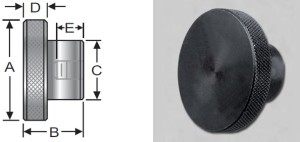

Steel and Stainless Steel Tapped Knurled Control Knobs, Metric
Steel P/N | Stainless P/N | Thread (A) | Knob Dia (A) | Total Length (B) | Hub Dia (C) | Knurled Width (D) | Reamed Depth (E) | Ship Wt (lbs) |
---|---|---|---|---|---|---|---|---|
MSKT-021 | MWTR-021 | M5 | 19 | 16 | 13 | 6 | 10 | 0.04 |
MSKT-022 | MWTR-022 | M6 | 19 | 16 | 13 | 6 | 10 | 0.04 |
MSKT-023 | MWTR-023 | M6 | 25 | 19 | 16 | 6 | 13 | 0.08 |
MSKT-024 | MWTR-024 | M8 | 25 | 19 | 16 | 6 | 13 | 0.08 |
MSKT-025 | MWTR-025 | M8 | 38 | 25 | 19 | 8 | 16 | 0.20 |
MSKT-026 | MWTR-026 | M10 | 38 | 25 | 19 | 8 | 16 | 0.20 |
MSKT-027 | MWTR-027 | M10 | 51 | 29 | 25 | 10 | 16 | 0.46 |
MSKT-028 | MWTR-028 | M12 | 51 | 29 | 25 | 10 | 16 | 0.46 |
MSKT-029 | MWTR-029 | M12 | 64 | 38 | 38 | 14 | 19 | 1.16 |
MSKT-031 | MWTR-031 | M16 | 64 | 38 | 38 | 14 | 19 | 1.16 |
MSKT-032 | MWTR-032 | M16 | 76 | 44 | 44 | 16 | 25 | 1.96 |
MSKT-033 | MWTR-033 | M20 | 76 | 44 | 44 | 16 | 25 | 1.96 |
