Steel PolyMount™ 1.58”, 2”, 3”, 4” dia base (Stud Style, Metric)

  • Steel and Stainless Steel
  • Nylon Base
  • Stud Style
  • Metric
  • Patent# US 6,742,750 B2

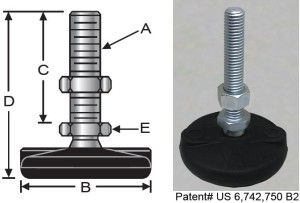

Steel P/N Stainless P/N Thread (A) Base Dia (B) Thread Length (C) Total Height (D) Max Load (kg) Hex Size (E) Ship Wt (lbs)
BMNYLA13 BSMNYLA13 M10 40 76 94 1135 16 0.20
BMNYLA23 BSMNYLA23 M10 51 76 105 1818 20 0.20
BMNYLA24 BSMNYLA24 M10 51 102 130 1818 20 0.24
BMNYLA26 BSMNYLA26 M10 51 152 181 1818 20 0.26
BMNYLA28 BSMNYLA28 M10 51 203 232 1818 20 0.32
BMNYLB23 BSMNYLB23 M12 51 76 105 1818 20 0.26
BMNYLB24 BSMNYLB24 M12 51 102 130 1818 20 0.34
BMNYLB26 BSMNYLB26 M12 51 152 181 1818 20 0.42
BMNYLB28 BSMNYLB28 M12 51 203 232 1818 20 0.52
BMNYLC23 BSMNYLC23 M16 51 76 105 1818 22 0.28
BMNYLC24 BSMNYLC24 M16 51 102 130 1818 22 0.30
BMNYLC26 BSMNYLC26 M16 51 152 181 1818 22 0.54
BMNYLC28 BSMNYLC28 M16 51 203 232 1818 22 0.76
BMNYLA34 BSMNYLA34 M10 76 102 130 2270 20 0.28
BMNYLA36 BSMNYLA36 M10 76 152 181 2270 20 0.32
BMNYLA38 BSMNYLA38 M10 76 203 232 2270 20 0.40
BMNYLB34 BSMNYLB34 M12 76 102 130 2270 20 0.42
BMNYLB36 BSMNYLB36 M12 76 152 181 2270 20 0.50
BMNYLB38 BSMNYLB38 M12 76 203 232 2270 20 0.60
BMNYLC34 BSMNYLC34 M16 76 102 130 2270 22 0.58
BMNYLC36 BSMNYLC36 M16 76 152 181 2270 22 0.72
BMNYLC38 BSMNYLC38 M16 76 203 232 2270 22 0.86
BMNYLD34 BSMNYLD34 M20 76 102 130 2270 27 0.74
BMNYLD36 BSMNYLD36 M20 76 152 181 2270 27 0.88
BMNYLD38 BSMNYLD38 M20 76 203 232 2270 27 1.16
BMNYLA44 BSMNYLA44 M10 102 102 135 1590 20 0.44
BMNYLA46 BSMNYLA46 M10 102 152 185 1590 20 0.46
BMNYLA48 BSMNYLA48 M10 102 203 236 1590 20 0.50
BMNYLB44 BSMNYLB44 M12 102 102 135 2270 20 0.54
BMNYLB46 BSMNYLB46 M12 102 152 185 2270 20 0.62
BMNYLB48 BSMNYLB48 M12 102 203 236 2270 20 0.76
BMNYLC44 BSMNYLC44 M16 102 102 135 2725 22 0.70
BMNYLC46 BSMNYLC46 M16 102 152 185 2725 22 0.84
BMNYLC48 BSMNYLC48 M16 102 203 236 2725 22 1.00
BMNYLD44 BSMNYLD44 M20 102 102 135 3409 27 0.84
BMNYLD46 BSMNYLD46 M20 102 152 185 3409 27 0.98
BMNYLD48 BSMNYLD48 M20 102 203 236 3409 27 1.28
BMNYLE44 BSMNYLE44 M24 102 102 135 3409 35 1.20
BMNYLE46 BSMNYLE46 M24 102 152 185 3409 35 1.58
BMNYLE48 BSMNYLE48 M24 102 203 236 3409 35 1.96
