- Delrin® Base
- Steel, 303 Stainless Steel and 316 Stainless Steel
- Stud Style
- Swivel
- Non-skid
- Metric

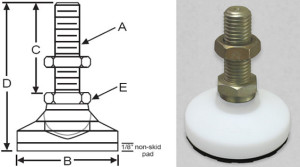

Steel P/N | 303 Stainless P/N | 316 Stainless P/N | Thread (A) | Base Dia (B) | Thread Length (C) | Total Height (D) | Max Load (kg) | Hex Size (E) | Ship Wt (lbs) |
---|---|---|---|---|---|---|---|---|---|
NMS-WD00 | NSMS-WD00 | NSMS-WD00-316 | M6 | 19 | 25 | 41 | 68 | 10 | 0.02 |
NMS-WD0 | NSMS-WD0 | NSMS-WD0-316 | M8 | 25 | 32 | 52 | 91 | 12 | 0.06 |
NMS-WD1 | NSMS-WD1 | NSMS-WD1-316 | M10 | 32 | 51 | 76 | 136 | 16 | 0.22 |
NMS-WD2 | NSMS-WD2 | NSMS-WD2-316 | M12 | 48 | 51 | 83 | 318 | 20 | 0.25 |
NMS-WD3 | NSMS-WD3 | NSMS-WD3-316 | M16 | 64 | 51 | 86 | 544 | 22 | 0.42 |
NMS-WD4 | NSMS-WD4 | NSMS-WD4-316 | M20 | 76 | 51 | 92 | 818 | 27 | 0.76 |
NMS-WD5 | NSMS-WD5 | NSMS-WD5-316 | M24 | 102 | 89 | 140 | 1090 | 35 | 1.80 |
NMS-WD6 | NSMS-WD6 | NSMS-WD6-316 | M30 | 152 | 102 | 175 | 1636 | 48 | 3.89 |
