Rest Buttons – Press Fit

Made from cold finished steel. Carburized and hardened with a black oxide finish. Ground insert diameter tolerance ±.0005″.

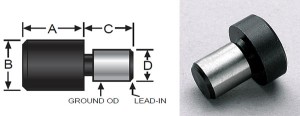

S&W P/N Button Height (A) Button Dia (B) Insert Height (C) Insert Dia (D)
RPF-1T 1/4 3/8 3/8 0.1885
RPF-2T 3/8 3/8 3/8 0.1885
RPF-3T 1/2 3/8 3/8 0.1885
RPF-1S 1/4 1/2 1/2 0.2510
RPF-2S 3/8 1/2 1/2 0.2510
RPF-3S 1/2 1/2 1/2 0.2510
RPF-1 1/4 5/8 1/2 0.3760
RPF-2 3/8 5/8 1/2 0.3760
RPF-3 1/2 5/8 1/2 0.3760
RPF-4 5/8 5/8 1/2 0.3760
RPF-5 3/4 5/8 1/2 0.3760
RPF-6 1 5/8 1/2 0.3760
RPF-7 1-1/4 5/8 1/2 0.3760
RPF-8 1-1/2 3/4 1/2 0.501
