- Steel body
- Steel and Nylon Nose
- Light End Force
- Add “P” to end of part number for optional nylon patch. Do not use the nylon patch if threading into soft material such as aluminum.
- Add “PT” for nylon pellet.

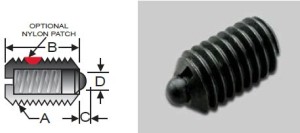

| Steel Nose P/N | Nylon Nose P/N | Thread (A) | Body Length (B) | Nose Length (C) | Nose Dia (D) | Start End Force (lbs) | End End Force (lbs) |
|---|---|---|---|---|---|---|---|
| SW10-2ASL | SWN10-2ASL | 8-32 | 0.437 | 0.052 | 0.070 | 0.50 | 1.5 |
| SW10-2SL | SWN10-2SL | 8-36 | 0.437 | 0.052 | 0.070 | 0.50 | 1.5 |
| SW10-3SL | SWN10-3SL | 10-32 | 0.468 | 0.065 | 0.093 | 0.75 | 2.5 |
| SW10-4SL | SWN10-4SL | 1/4-20 | 0.531 | 0.078 | 0.119 | 1 | 3.5 |
| SW10-5SL | SWN10-5SL | 5/16-18 | 0.562 | 0.084 | 0.135 | 1.25 | 4 |
| SW10-6SL | SWN10-6SL | 3/8-16 | 0.625 | 0.110 | 0.186 | 1.5 | 5 |
| SW10-8SL | SWN10-8SL | 1/2-13 | 0.750 | 0.151 | 0.248 | 1.75 | 5.5 |
| SW10-10SL | SWN10-10SL | 5/8-11 | 1.062 | 0.215 | 0.310 | 2 | 8.5 |
