- Material: 100% Solid Stainless Steel 303
- Smooth, Comfortable oversized finger pads for high torque application
- Threaded blind holes
- Solid cavity-free design is ideal for food service and medical applications
- Polished to a mirror finish

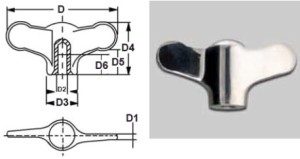

| P/N | Overall Width (D) | Wing Thickness (D1) | Thread Size (D2) | Hub Dia (D3) | Total Height (D4) | Base To Wing (D5) | Base To Wing (D6) |
|---|---|---|---|---|---|---|---|
| SW-65051 | 1.97 | 3/64 | 10-24 | .55 | .94 | .45 | .39 |
| SW-65052 | 1.97 | 3/64 | 1/4-20 | .55 | .94 | .45 | .39 |
| SW-65053 | 2.95 | 3/16 | 5/16-18 | .82 | 1.38 | .65 | .55 |
| SW-65054 | 2.95 | 3/16 | 3/8-16 | .82 | 1.38 | .65 | .55 |
