This high load capacity model has 2 lag holes and a smoothly rounded design for ease of cleaning. It is also available with a non-skid rubber pad.

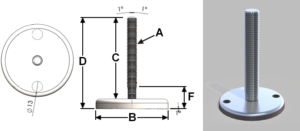

- Dimensions in inches
| Part # | Thread (A) | Base Dia. (B) | Thread Length (C) | Total Height (D) | Max. Height (E) | Min. Height (F) | Adjustment | Max Load (lbs) | Max Pull (lbs) | Slope (Degrees) |
|---|---|---|---|---|---|---|---|---|---|---|
| SW-J90-58-40 | 5/8-11 | 3.5 | 4 | 4.47 | 4.02 | 1.63 | 4 | 9800 | 2700 | 1 |
| SW-J90-75-60 | 3/4-10 | 3.5 | 6 | 6.47 | 5.81 | 1.63 | 6 | 9800 | 2700 | 1 |
| SW-J110-58-60 | 5/8-11 | 4.3 | 6 | 6.47 | 5.91 | 1.63 | 6 | 6800 | 2300 | 1 |
| SW-J110-75-60 | 3/4-10 | 4.3 | 6 | 6.47 | 5.81 | 1.63 | 6 | 9800 | 2300 | 1 |
| SW-J90-58-60 | 5/8-11 | 3.5 | 6 | 6.47 | 5.91 | 1.63 | 6 | 6800 | 2700 | 1 |
| SW-J110-58-80 | 5/8-11 | 4.29 | 8 | 8.47 | 7.91 | 1.63 | 8 | 3800 | 2700 | 1 |
| SW-J110-75-80 | 3/4-10 | 4.29 | 8 | 8.47 | 7.81 | 1.63 | 8 | 8100 | 2700 | 1 |
