Ball Plunger – Steel Metric

  • Black Oxide Steel Body
  • Stainless Ball
  • Add “P” to end of part number for optional nylon patch. Do not use the nylon patch if threading into soft material such as aluminum.
  • Add “PT” for nylon pellet.

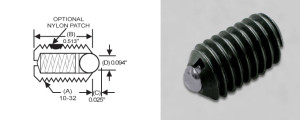

Stainless Ball P/N Thread (A) Body Length (B) Exposed Length (C) Ball Dia. (D) Start – End Force (lbs)
MSW10-1B M3 x 0.5 7 0.4 1.5 0.7 – 1
MSW10-2B M4 x 0.7 9 0.80 2.5 0.9 – 2.25
MSW10-4B M6 x 1.0 14 1 3.5 2-3
MSW10-4BL M6 x 1.0 14 1 3.5 0.45-1.4
MSW10-4BH M6 x 1.0 14 1 3.5 6.3 – 9
MSW10-5B M8 x 1.25 16 1.5 5 3.4 – 6.8
MSW10-5BL M8 x 1.25 16 1.5 5 1.1 – 2.25
MSW10-5BH M8 x 1.25 16 1.5 5 9 – 13.5
MSW10-6B M10 x 1.5 19 2 6 4.5 – 7.8
MSW10-6BL M10 x 1.5 19 2 6 1.8 – 3.4
MSW10-6BH M10 x 1.5 19 2 6 13.5 – 20
MSW10-8B M12 x 1.75 22 2.5 8 6.75 – 12.4
MSW10-8BL M12 x 1.75 22 2.5 8 2.25 – 4.5
MSW10-8BH M12 x 1.75 22 2.5 8 17 – 26
