Type HX has an optimal design with a hygienic sealing of the base and thread. The foot is easy to clean and is approved to be used in the food industry.
- Dimensions in inches

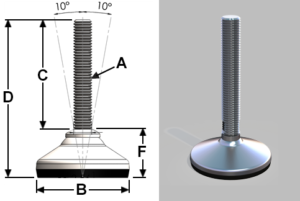

| Part # | Thread (A) | Base Dia. (B) | Thread Length (C) | Total Height (D) | Max. Height (E) | Min. Height (F) | Adjustment | Max Load (lbs) | Max Pull (lbs) | Slope (Degrees) |
|---|---|---|---|---|---|---|---|---|---|---|
| SW-HX65-50-40 | 1/2-13 | 2.56 | 4 | 5.33 | 4.89 | 1.63 | 4 | 2000 | 899 | 10 |
| SW-HX65-58-40 | 5/8-11 | 2.56 | 4 | 5.33 | 4.78 | 1.63 | 4 | 2000 | 899 | 10 |
| SW-HX65-58-6 | 5/8-11 | 2.56 | 6 | 7.33 | 6.78 | 1.63 | 6 | 2000 | 899 | 10 |
| SW-HX80-12-60 | 1/2-13 | 3.15 | 6 | 7.53 | 1.08 | 1.63 | 6 | 2500 | 899 | 10 |
| SW-HX80-50-40 | 1/2-13 | 3.15 | 4 | 5.53 | 5.08 | 1.63 | 4 | 3300 | 899 | 10 |
| SW-HX80-58-40 | 5/8-11 | 3.15 | 4 | 5.53 | 4.97 | 1.63 | 4 | 3300 | 899 | 10 |
| SW-HX80-58-60 | 5/8-11 | 3.15 | 6 | 7.53 | 6.97 | 1.63 | 6 | 3300 | 899 | 10 |
| SW-HX80-34-40 | 3/4-10 | 3.15 | 4 | 5.53 | 4.87 | 1.63 | 4 | 3300 | 899 | 10 |
| SW-HX80-75-60 | 3/4-10 | 3.15 | 6 | 7.53 | 6.87 | 1.63 | 6 | 3300 | 899 | 10 |
