The USDA certification ensures that Type H US complies with the strictest hygienic criteria and minimizes the cleaning expenses and water consumption.

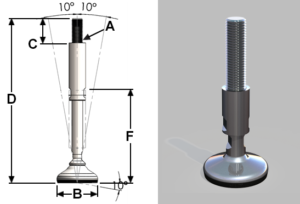

- Dimensions in inches
| Part # | Thread (A) | Base Dia. (B) | Thread Length (C) | Total Height (D) | Max. Height (E) | Min. Height (F) | Adjustment | Max Load (lbs) | Max Pull (lbs) | Slope (Degrees) |
|---|---|---|---|---|---|---|---|---|---|---|
| SW-H120-100-65 | 1-8 | 4.7 | 6.5 | 7.94 | 6.89 | 4.98 | 1.9 | 6700 | 562 | 10 |
| SW-H120-100-85 | 1-8 | 3.9 | 9 | 9.75 | 8.72 | 5.81 | 2.9 | 4400 | 562 | 10 |
| SW-H100-75-65 | 3/4-10 | 3.9 | 6.5 | 7.75 | 6.71 | 4.8 | 1.9 | 4400 | 562 | 10 |
| SW-H100-58-65 | 5/8-11 | 3.9 | 6.5 | 7.75 | 6.71 | 4.8 | 1.9 | 4400 | 562 | 10 |
| SW-H80-75-65 | 3/4-10 | 3.15 | 6.5 | 7.58 | 6.54 | 4.63 | 1.9 | 3300 | 562 | 10 |
| SW-H80-75-85 | 3/4-10 | 3.15 | 8.5 | 9.58 | 8.56 | 5.65 | 2.9 | 3300 | 562 | 10 |
| SW-H80-58-65 | 5/8-11 | 3.15 | 6.5 | 7.58 | 6.54 | 4.63 | 1.9 | 3300 | 562 | 10 |
| SW-H60-58-65 | 5/8-11 | 2.36 | 6.5 | 7.58 | 6.54 | 4.63 | 1.9 | 3300 | 562 | 10 |
| SW-H60-58-85 | 5/8-11 | 2.36 | 8.5 | 9.53 | 8.5 | 5.59 | 2.9 | 1500 | 562 | 10 |
| SW-H60-75-65 | 3/4-10 | 2.36 | 6.5 | 7.53 | 6.48 | 4.57 | 1.9 | 1500 | 562 | 10 |
