Toggle Pads – Serrated Pad, Steel Body

Steel Serrated Toggle & Swivel Pads, Inch

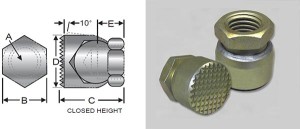

S&W P/N Thread (A) Max Load (lbs) Hex Size (B) Closed Height (C) Pad Dia (d) Thread Depth (E)
SSP-1 1/4-20 3,900 1/2 5/8 5/8 5/16
SSP-2 5/16-18 5,900 9/16 3/4 11/16 3/8
SSP-3 3/8-16 6,400 5/8 13/16 3/4 3/8
SSP-4 1/2-13 7,000 3/4 15/16 7/8 7/16
SSP-5 5/8-11 10,000 7/8 1 1 7/16
SSP-6 3/4-10 13,500 1 1/16 1 11/32 1 1/4 5/8
SSP-7 1-8 18,750 1 3/8 1 53/64 1 5/8 13/16
