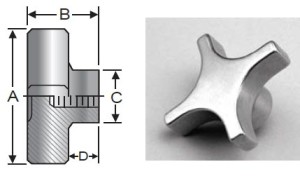

| S&W P/N | Thread | Reamed Dia | Knob Dia (A) | Total Length (B) | Hub Dia (C) | Hub Length (D) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|
| ALH-1 | – | Solid | 1 | 7/8 | 1/2 | 1/2 | .02 |
| ALH-2T | 1/4-20 | – | 1 | 7/8 | 1/2 | 1/2 | .02 |
| ALH-2TT | 1/4-20 | – | 1 | 7/8 | 1/2 | 1/2 | .02 |
| ALH-3R | – | 1/4 | 1 | 7/8 | 1/2 | 1/2 | .02 |
| ALH-4 | – | Solid | 1 1/2 | 7/8 | 5/8 | 3/8 | .05 |
| ALH-5T | 5/16-18 | – | 1 1/2 | 7/8 | 5/8 | 3/8 | .05 |
| ALH-5TT | 5/16-18 | – | 1 1/2 | 7/8 | 5/8 | 3/8 | .05 |
| ALH-6R | – | 5/16 | 1 1/2 | 7/8 | 5/8 | 3/8 | .05 |
| ALH-7 | – | Solid | 2 | 1 | 13/16 | 1/2 | .08 |
| ALH-8T | 3/8-16 | – | 2 | 1 | 13/16 | 1/2 | .08 |
| ALH-8TT | 3/8-16 | – | 2 | 1 | 13/16 | 1/2 | .08 |
| ALH-9R | – | 3/8 | 2 | 1 | 13/16 | 1/2 | .08 |
| ALH-10 | – | Solid | 2 1/2 | 1 1/8 | 1 | 9/16 | .14 |
| ALH-11T | 1/2-13 | – | 2 1/2 | 1 1/8 | 1 | 9/16 | .14 |
| ALH-11TT | 1/2-13 | – | 2 1/2 | 1 1/8 | 1 | 9/16 | .14 |
| ALH-12R | – | 1/2 | 2 1/2 | 1 1/8 | 1 | 9/16 | .14 |
| ALH-13 | – | Solid | 3 | 1 1/4 | 1 1/4 | 5/8 | .22 |
| ALH-14T | 5/8-11 | – | 3 | 1 1/4 | 1 1/4 | 5/8 | .22 |
| ALH-14TT | 5/8-11 | – | 3 | 1 1/4 | 1 1/4 | 5/8 | .22 |
| ALH-15R | – | 5/8 | 3 | 1 1/4 | 1 1/4 | 5/8 | .22 |
