Acme Thread Low Profile (Standard Base, Inch)

  • Steel and Stainless Steel
  • Standard Low Profile Base
  • Stud Style
  • Inch

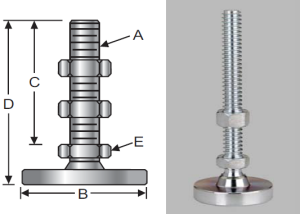

Steel P/N Stainless P/N Thread (A) Base Dia (B) Thread Length (C) Total Height (D) Hex Size (E) Max Load (lbs)
LP1-A4-AC1 SLP1-A4-AC1 3/8-12 2 4 5 3/4 3000
LP1-B4-AC1 SLP1-B4-AC1 1/2-10 2 4 5 3/4 5250
LP1-C4-AC1 SLP1-C4-AC1 5/8-8 2 4 5 7/8 7500
LP1-C6-AC1 SLP1-C6-AC1 5/8-8 2 6 7 7/8 7500
LP2-A4-AC1 SLP2-A4-AC1 3/8-12 2 1/2 4 5 3/4 3000
LP2-B4-AC1 SLP2-B4-AC1 1/2-10 2 1/2 4 5 3/4 5250
LP2-C4-AC1 SLP2-C4-AC1 5/8-8 2 1/2 4 5 7/8 7500
LP2-C6-AC1 SLP2-C6-AC1 5/8-8 2 1/2 6 7 7/8 7500
LP3-C4-AC1 SLP3-C4-AC1 5/8-8 3 4 5 7/8 7500
LP3-C6-AC1 SLP3-C6-AC1 5/8-8 3 6 7 7/8 7500
LP3-D4-AC1 SLP3-D4-AC1 3/4-6 3 4 5 1 1/16 9000
LP3-D6-AC1 SLP3-D6-AC1 3/4-6 3 6 7 1 1/16 9000
LP4-B4-AC1 SLP4-B4-AC1 1/2-10 4 4 5 3/4 5250
LP4-C4-AC1 SLP4-C4-AC1 5/8-8 4 4 5 7/8 7500
LP4-C6-AC1 SLP4-C6-AC1 5/8-8 4 6 7 7/8 7500
LP4-D4-AC1 SLP4-D4-AC1 3/4-6 4 4 5 1 1/16 9000
LP4-D6-AC1 SLP4-D6-AC1 3/4-6 4 6 7 1 1/16 9000
LP4-E4-AC1 SLP4-E4-AC1 1-5 4 4 5 1 3/8 11250
LP4-E6-AC1 SLP4-E6-AC1 1-5 4 6 7 1 3/8 11250
