- 303 Stainless Steel Body
- Steel and Nylon Ball
- Add “P” to end of part number for optional nylon patch. Do not use the nylon patch if threading into soft material such as aluminum.
- Add “PT” for nylon pellet.

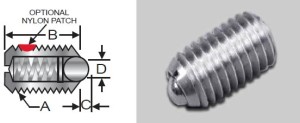

| Stainless Ball P/N | Nylon Ball P/N | Thread (A) | Body Length (B) | Exposed Length (C) | Ball Dia. (D) | Start End Force (lbs) | End End Force (lbs) |
|---|---|---|---|---|---|---|---|
| SSW10-11B | SSWN10-11B | 4-48 | 0.187 | 0.020 | 0.062 | 0.125 | 0.5 |
| SSW10-12B | SSWN10-12B | 5-40 | 0.250 | 0.020 | 0.062 | 0.25 | 0.75 |
| SSW10-1B | SSWN10-1B | 6-40 | 0.312 | 0.023 | 0.078 | 0.5 | 1 |
| SSW10-22B | SSWN10-22B | 8-32 | 0.344 | 0.025 | 0.094 | 0.5 | 1.25 |
| SSW10-2B | SSWN10-2B | 8-36 | 0.344 | 0.025 | 0.094 | 0.5 | 1.25 |
| SSW10-3B | SSWN10-3B | 10-32 | 0.513 | 0.025 | 0.094 | 1.5 | 3 |
| SSW10-3BL | SSWN10-3BL | 10-32 | 0.513 | 0.025 | 0.094 | 0.5 | 1.5 |
| SSW10-3BH | SSWN10-3BH | 10-32 | 0.513 | 0.025 | 0.094 | 2 | 5 |
| SSW10-4B | SSWN10-4B | 1/4-20 | 0.531 | 0.035 | 0.125 | 3 | 7 |
| SSW10-4BL | SSWN10-4BL | 1/4-20 | 0.531 | 0.035 | 0.125 | 2 | 4 |
| SSW10-4BH | SSWN10-4BH | 1/4-20 | 0.531 | 0.035 | 0.125 | 4 | 12 |
| SSW10-5B | SSWN10-5B | 5/16-18 | 0.578 | 0.040 | 0.156 | 4 | 9 |
| SSW10-5BL | SSWN10-5BL | 5/16-18 | 0.578 | 0.040 | 0.156 | 2 | 4.5 |
| SSW10-5BH | SSWN10-5BH | 5/16-18 | 0.578 | 0.040 | 0.156 | 6 | 17 |
| SSW10-6B | SSWN10-6B | 3/8-16 | 0.625 | 0.048 | 0.188 | 5 | 10 |
| SSW10-6BL | SSWN10-6BL | 3/8-16 | 0.625 | 0.048 | 0.188 | 2.5 | 5 |
| SSW10-6BH | SSWN10-6BH | 3/8-16 | 0.625 | 0.048 | 0.188 | 6 | 21 |
| SSW10-8B | SSWN10-8B | 1/2-13 | 0.750 | 0.072 | 0.281 | 6 | 12 |
| SSW10-8BL | SSWN10-8BL | 1/2-13 | 0.750 | 0.072 | 0.281 | 3 | 6 |
| SSW10-8BH | SSWN10-8BH | 1/2-13 | 0.750 | 0.072 | 0.281 | 6 | 30 |
| SSW10-10B | SSWN10-10B | 5/8-11 | 0.984 | 0.096 | 0.375 | 9 | 18 |
| SSW10-10BL | SSWN10-10BL | 5/8-11 | 0.984 | 0.096 | 0.375 | 4.5 | 9 |
| SSW10-10BH | SSWN10-10BH | 5/8-11 | 0.984 | 0.096 | 0.375 | 7 | 50 |
