Knurled Control Knobs – Reamed (With Set Screw, Inch)

Steel and Stainless Steel Reamed Knurled Control Knobs With Set Screw, Inch

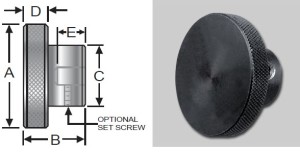

Steel P/N Stainless P/N Reamed Dia Knob Dia (A) Total Length (B) Hub Dia (C) Knurled Width (D) Reamed Depth (E) Ship Wt (lbs)
SCKS-041 WHRS-041 3/16 3/4 5/8 1/2 1/4 3/8 0.04
SCKS-042 WHRS-042 1/4 3/4 5/8 1/2 1/4 3/8 0.04
SCKS-043 WHRS-043 1/4 1 3/4 5/8 1/4 1/2 0.08
SCKS-044 WHRS-044 5/16 1 3/4 5/8 1/4 1/2 0.08
SCKS-045 WHRS-045 5/16 1 1/2 1 3/4 5/16 5/8 0.20
SCKS-046 WHRS-046 3/8 1 1/2 1 3/4 5/16 5/8 0.20
SCKS-047 WHRS-047 3/8 2 1 1/8 1 3/8 5/8 0.46
SCKS-048 WHRS-048 1/2 2 1 1/8 1 3/8 5/8 0.46
SCKS-049 WHRS-049 1/2 2 1/2 1 1/2 1 1/2 9/16 3/4 1.16
SCKS-051 WHRS-051 5/8 2 1/2 1 1/2 1 1/2 9/16 3/4 1.16
SCKS-052 WHRS-052 5/8 3 1 3/4 1 3/4 5/8 1 1.96
SCKS-053 WHRS-053 3/4 3 1 3/4 1 3/4 5/8 1 1.96
