Aluminum and Stainless Steel Precision Knurled Control Knobs Without Handle, Inch

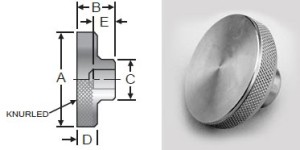

| Aluminum P/N | Stainless P/N | Thread Size | Reamed Dia | Knob Dia (A) | Total Length (B) | Hub Dia (C) | Knurled Width (D) | Hole Depth (E) |
|---|---|---|---|---|---|---|---|---|
| ACK-011 | SAK-011 | – | 1/4 | 1 | 13/16 | 1/2 | 3/8 | 5/8 |
| ACK-012 | SAK-012 | – | Solid Hub | 1 | 13/16 | 1/2 | 3/8 | |
| ACK-022 | SAK-022 | 1/4-20 | – | 1 | 13/16 | 1/2 | 3/8 | 5/8 |
| ACK-022B | SAK-022B | 1/4-28 | – | 1 | 13/16 | 1/2 | 3/8 | 5/8 |
| ACK-023 | SAK-023 | 5/16-18 | – | 1 | 13/16 | 1/2 | 3/8 | 5/8 |
| ACK-023B | SAK-023B | 5/16-24 | – | 1 | 13/16 | 1/2 | 3/8 | 5/8 |
| ACK-013 | SAK-013 | – | 3/8 | 2 | 1 1/8 | 13/16 | 9/16 | 7/8 |
| ACK-014 | SAK-014 | – | Solid Hub | 2 | 1 1/8 | 13/16 | 9/16 | |
| ACK-024 | SAK-024 | 3/8-16 | – | 2 | 1 1/8 | 13/16 | 9/16 | 7/8 |
| ACK-024B | SAK-024B | 3/8-24 | – | 2 | 1 1/8 | 13/16 | 9/16 | 7/8 |
| ACK-025 | SAK-025 | 1/2-13 | – | 2 | 1 1/8 | 13/16 | 9/16 | 7/8 |
| ACK-025B | SAK-025B | 1/2-20 | – | 2 | 1 1/8 | 13/16 | 9/16 | 7/8 |
| ACK-015 | SAK-015 | – | 5/8 | 3 | 1 1/4 | 1 1/4 | 11/16 | 7/8 |
| ACK-016 | SAK-016 | – | Solid Hub | 3 | 1 1/4 | 1 1/4 | 11/16 | |
| ACK-026 | SAK-026 | 5/8-11 | – | 3 | 1 1/4 | 1 1/4 | 11/16 | 7/8 |
| ACK-026B | SAK-026B | 5/8-18 | – | 3 | 1 1/4 | 1 1/4 | 11/16 | 7/8 |
| ACK-027 | SAK-027 | 3/4-10 | – | 3 | 1 1/4 | 1 1/4 | 11/16 | 7/8 |
| ACK-027B | SAK-027B | 3/4-16 | – | 3 | 1 1/4 | 1 1/4 | 11/16 | 7/8 |
