- Steel and Stainless Steel
- Nylon Base

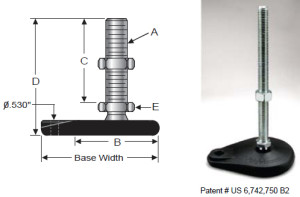

- Stud Style Teardrop Levelers With Lag Hole
- Inch
- For SocketLock™, add -SL to the end of the part number.
- Patent # US 6,742,750 B2
| Steel P/N | Stainless P/N | Thread (A) | Base Dia (B) | Base Width | Thread Length (C) | Total Height (D) | Max Load (lbs) | Hex Size (E) | Ship Wt (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| TNYLB44 | TSNYLB44 | 1/2-13 | 4 | 5 7/16 | 4 | 5 5/16 | 5000 | 3/4 | 0.60 |
| TNYLB46 | TSNYLB46 | 1/2-13 | 4 | 5 7/16 | 6 | 7 5/16 | 5000 | 3/4 | 0.68 |
| TNYLB48 | TSNYLB48 | 1/2-13 | 4 | 5 7/16 | 8 | 9 5/16 | 5000 | 3/4 | 0.82 |
| TNYLC44 | TSNYLC44 | 5/8-11 | 4 | 5 7/16 | 4 | 5 5/16 | 6000 | 7/8 | 0.75 |
| TNYLC46 | TSNYLC46 | 5/8-11 | 4 | 5 7/16 | 6 | 7 5/16 | 6000 | 7/8 | 0.90 |
| TNYLC48 | TSNYLC48 | 5/8-11 | 4 | 5 7/16 | 8 | 9 5/16 | 6000 | 7/8 | 1.07 |
| TNYLD44 | TSNYLD44 | 3/4-10 | 4 | 5 7/16 | 4 | 5 5/16 | 7500 | 1 1/16 | 0.90 |
| TNYLD46 | TSNYLD46 | 3/4-10 | 4 | 5 7/16 | 6 | 7 5/16 | 7500 | 1 1/16 | 1.04 |
| TNYLD48 | TSNYLD48 | 3/4-10 | 4 | 5 7/16 | 8 | 9 5/16 | 7500 | 1 1/16 | 1.34 |
| TNYLE44 | TSNYLE44 | 1-8 | 4 | 5 7/16 | 4 | 5 5/16 | 7500 | 1 3/8 | 1.26 |
| TNYLE46 | TSNYLE46 | 1-8 | 4 | 5 7/16 | 6 | 7 5/16 | 7500 | 1 3/8 | 1.64 |
| TNYLE48 | TSNYLE48 | 1-8 | 4 | 5 7/16 | 8 | 9 5/16 | 7500 | 1 3/8 | 2.02 |
