![](https://swmfg.wpenginepowered.com/wp-content/uploads/2016/01/rattle-mount2-diagram-300x155.jpg)

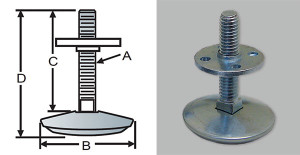

Rattle Mount with Mounting Bracket.
S&W P/N | Max Load (lbs) | Thread (A) | Base Dia (B) | Thread Length (C) | Height (D) | Package Qty |
---|---|---|---|---|---|---|
SW-RCLE-8C | 500 | 3/8-16 | 1-3/4″ | 1-3/4″ | 1-1/2″ | 4 |
Rattle Mount with Mounting Bracket.
S&W P/N | Max Load (lbs) | Thread (A) | Base Dia (B) | Thread Length (C) | Height (D) | Package Qty |
---|---|---|---|---|---|---|
SW-RCLE-8C | 500 | 3/8-16 | 1-3/4″ | 1-3/4″ | 1-1/2″ | 4 |
