Type HJ Stainless Steel Hygienic USDA Model w/ Bolt Down Holes

Type HJ is USDA-certified and suitable for hygienic production environments. It can be mounted to the floor and has a high max load capacity and tolerates 9° slants.

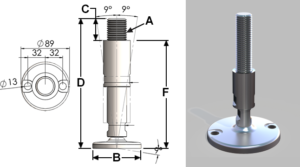

  • Dimensions in inches

Part # Thread (A) Base Dia. (B) Thread Length (C) Total Height (D) Max. Height (E) Min. Height (F) Adjustment Max Load (lbs) Max Pull (lbs) Slope (Degrees)
SW-HJ110-75-65 3/4-10 4.29 6.5 7.33 6.29 4.38 1.9 9846.6 2753.9 10
