Type HJ Stainless Steel Solid Model

This high load capacity model has two lag holes and admits up to 9° slopes on floors and equipment. It has a smoothly rounded design for ease of cleaning and is also available with a non-skid rubber pad.

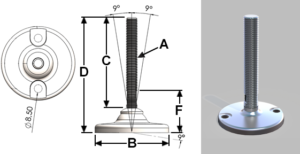

  • Dimensions in inches

Part # Thread (A) Base Dia. (B) Thread Length (C) Total Height (D) Max. Height (E) Min. Height (F) Adjustment Max Load (lbs) Max Pull (lbs) Slope (Degrees)
SW-HJ90-58-60 5/8-11 3.5 6 7.02 6.46 2.37 4.09 6812 2754 9
SW-HJ90-75-60 3/4-10 3.5 6 7.02 6.35 2.47 3.88 9847 2754 9
SW-HJ90-58-40 5/8-11 3.5 4 5.02 4.46 2.37 2.09 6812 2754 9
SW-HJ90-75-40 3/4-10 3.5 4 5.02 4.35 2.47 1.88 9847 2754 9
SW-HJ110-75-60 3/4-10 4.3 4 5.02 4.35 2.47 1.88 9847 2754 9
SW-HJ110-75-60 3/4-10 4.3 6 7.02 6.35 2.47 3.88 9846 2754 9
SW-HJ110-75-80 3/4-10 4.3 8 9.02 8.35 2.47 5.88 8093 2754 9
