Type HX (Fixed) 304 Stainless Steel with Vulcanized Rubber Pad

Type HX Fixed has an optimal design with a hygienic sealing of the base and thread with an extended lag hole to secure the base to a surface. The foot is easy to clean and is approved to be used in the food industry.

  • Dimensions in inches

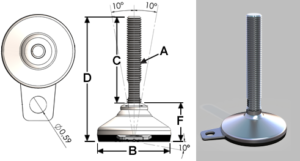

Part # Thread (A) Base Dia. (B) Thread Length (C) Total Height (D) Max. Height (E) Min. Height (F) Adjustment Max Load (lbs) Max Pull (lbs) Slope (Degrees)
SW-HX81-12-40 1/2-13 3.15 4 5.53 5.08 1.63 4 3372 899 10
SW-HX81-12-60 1/2-13 3.15 6 7.53 7.08 1.63 6 2563 899 10
SW-HX81-58-40 5/8-11 3.15 4 5.53 4.97 1.63 4 3372.13 899 10
SW-HX81-58-60 5/8-11 3.15 6 7.53 6.97 1.63 6 3372.13 899 10
SW-HX81-75-40 3/4-10 3.15 4 5.53 4.87 1.63 4 3372.13 899 10
SW-HX81-75-60 3/4-10 3.15 6 7.53 6.87 1.63 6 3372 899 10
SW-HX106-12-40 1/2-13 4.134 4 5.55 4.99 1.63 4 4945.8 899 10
SW-HX106-58-40 5/8-11 4.134 4 5.55 4.99 1..63 4 4945.8 899 10
SW-HX106-58-60 5/8-11 4.134 6 7.55 6.99 1.63 6 4945.8 899 10
SW-HX106-75-60 3/4-10 4.134 6 7.55 6.89 1.63 6 4945.8 899 10
