Acme Thread Level-It™ (Stud Style, Inch)

Steel and Stainless Steel Stud Style Levelers, Inch

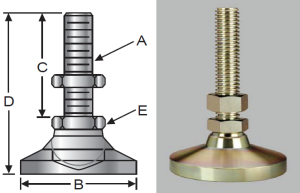

Steel P/N Stainless P/N Thread (A) Base Dia (B) Thread Length (C) Total Height (D) Hex Size (E) Max Load (lbs)
BSW-0-ACME1 SSW-0-ACME1 1/4-16 1 1 1/4 1 15/16 1/2 1500
BSW-0A-ACME1 SSW-0A-ACME1 1/4-16 1 2 1/2 3 3/16 1/2 1500
BSW-100-ACME1 SSW-100-ACME1 5/16-14 1 1/4 2 2 7/8 5/8 3750
BSW-100A-ACME1 SSW-100A-ACME1 5/16-14 1 1/4 4 4 7/8 5/8 3750
BSW-1-ACME1 SSW-1-ACME1 3/8-12 1 1/4 2 2 7/8 5/8 5625
BSW-1A-ACME1 SSW-1A-ACME1 3/8-12 1 1/4 4 4 7/8 5/8 5625
BSW-2-ACME1 SSW-2-ACME1 1/2-10 1 7/8 2 3 1/8 3/4 7500
BSW-2A-ACME1 SSW-2A-ACME1 1/2-10 1 7/8 4 5 1/8 3/4 7500
BSW-3-ACME1 SSW-3-ACME1 5/8-8 2 1/2 2 3 1/4 7/8 9000
BSW-3A-ACME1 SSW-3A-ACME1 5/8-8 2 1/2 4 5 1/4 7/8 9000
BSW-4-ACME1 SSW-4-ACME1 3/4-6 3 2 3 1/2 1 1/16 11100
BSW-4A-ACME1 SSW-4A-ACME1 3/4-6 3 4 5 1/2 1 1/16 11100
BSW-5-ACME1 SSW-5-ACME1 1-5 4 3 1/2 5 3/8 1 3/8 30000
BSW-5EL-ACME1 SSW-5EL-ACME1 1-5 4 4 1/4 6 1/8 1 3/8 30000
BSW-5A-ACME1 SSW-5A-ACME1 1-5 4 6 7 7/8 1 3/8 30000
BSW-5G-ACME1 SSW-5G-ACME1 1-5 4 8 9 7/8 1 3/8 30000
BSW-6-ACME1 SSW-6-ACME1 1 1/4-5 6 4 6 3/4 1 7/8 60000
BSW-6EL-ACME1 SSW-6EL-ACME1 1 1/4-5 6 6 8 3/4 1 7/8 60000
