Acme Thread PolyMounts™ (Stud Style, 5″ dia base, Inch)

Acme Thread Stud Style, 5″ Dia. Base, Inch

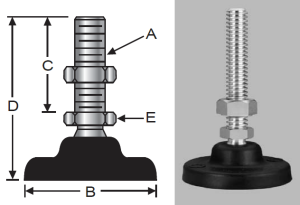

Steel P/N Stainless P/N Thread (A) Base Dia (B) Thread Length (C) Total Height (D) Hex Size (E) Max Load (lbs)
BNYLC54-ACME1 BSNYLC54-ACME1 5/8-8 5 4 6 1/4 1 1/16 1.12
BNYLC56-ACME1 BSNYLC56-ACME1 5/8-8 5 6 8 1/4 1 1/16 1.26
BNYLC58-ACME1 BSNYLC58-ACME1 5/8-8 5 8 10 1/4 1 1/16 1.40
BNYLC510-ACME1 BSNYLC510-ACME1 5/8-8 5 10 12 1/4 1 1/16 1.63
BNYLD54-ACME1 BSNYLD54-ACME1 3/4-6 5 4 6 1/4 1 1/16 1.22
BNYLD56-ACME1 BSNYLD56-ACME1 3/4-6 5 6 8 1/4 1 1/16 1.39
BNYLD58-ACME1 BSNYLD58-ACME1 3/4-6 5 8 10 1/4 1 1/16 1.56
BNYLD510-ACME1 BSNYLD510-ACME1 3/4-6 5 10 12 1/4 1 1/16 1.70
BNYLE54-ACME1 BSNYLE54-ACME1 1-5 5 4 6 1/4 1 3/8 1.66
BNYLE56-ACME1 BSNYLE56-ACME1 1-5 5 6 8 1/4 1 3/8 1.83
BNYLE58-ACME1 BSNYLE58-ACME1 1-5 5 8 10 1/4 1 3/8 2.00
BNYLE510-ACME1 BSNYLE510-ACME1 1-5 5 10 12 1/4 1 3/8 2.17
BNYLF54-ACME1 BSNYLF54-ACME1 1 1/8-5 5 4 6 1/4 1 3/8 2.20
BNYLF56-ACME1 BSNYLF56-ACME1 1 1/8-5 5 6 8 1/4 1 3/8 2.37
BNYLF58-ACME1 BSNYLF58-ACME1 1 1/8-5 5 8 10 1/4 1 3/8 2.54
BNYLF510-ACME1 BSNYLF510-ACME1 1 1/8-5 5 10 12 1/4 1 3/8 1.71
BNYLG54-ACME1 BSNYLG54-ACME1 1 1/4-5 5 4 6 1/4 1 7/8 2.84
BNYLG56-ACME1 BSNYLG56-ACME1 1 1/4-5 5 6 8 1/4 1 7/8 3.01
BNYLG58-ACME1 BSNYLG58-ACME1 1 1/4-5 5 8 10 1/4 1 7/8 3.18
BNYLG510-ACME1 BSNYLG510-ACME1 1 1/4-5 5 10 12 1/4 1 7/8 3.35
