Press Fit Ball Nose Plungers – Steel & Stainless Steel, Standard End Force, w/Nylon Ball

  • Steel and Stainless Steel Body
  • Nylon Ball Nose
  • Standard End Force

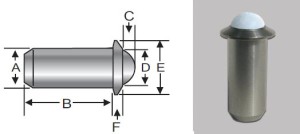

Steel Body with Nylon Ball P/N Stainless Body with Nylon Ball P/N OD (A) Body Length (B) Exposed Length (C) Nose Dia (D) Flange Length (E) Flange Length (F) Start End Force (lbs) End End Force (lbs)
SWPFN10-2B SSWPFN10-2B 0.125 0.252 0.035 0.094 0.032 0.187 0.75 2.5
SWPFN10-3B SSWPFN10-3B 0.188 0.394 0.058 0.156 0.040 0.250 2 5
SWPFN10-4B SSWPFN10-4B 0.250 0.471 0.070 0.187 0.045 0.312 3 7
SWPFN10-5B SSWPFN10-5B 0.312 0.643 0.090 0.250 0.045 0.375 4 10
SWPFN10-6B SSWPFN10-6B 0.375 0.786 0.110 0.312 0.078 0.500 5 14
SWPFN10-8B SSWPFN10-8B 0.500 1.100 0.161 0.437 0.110 0.688 8 18
